MIA Lomograflok chassis

Instant film, wide angle, and no lens required.

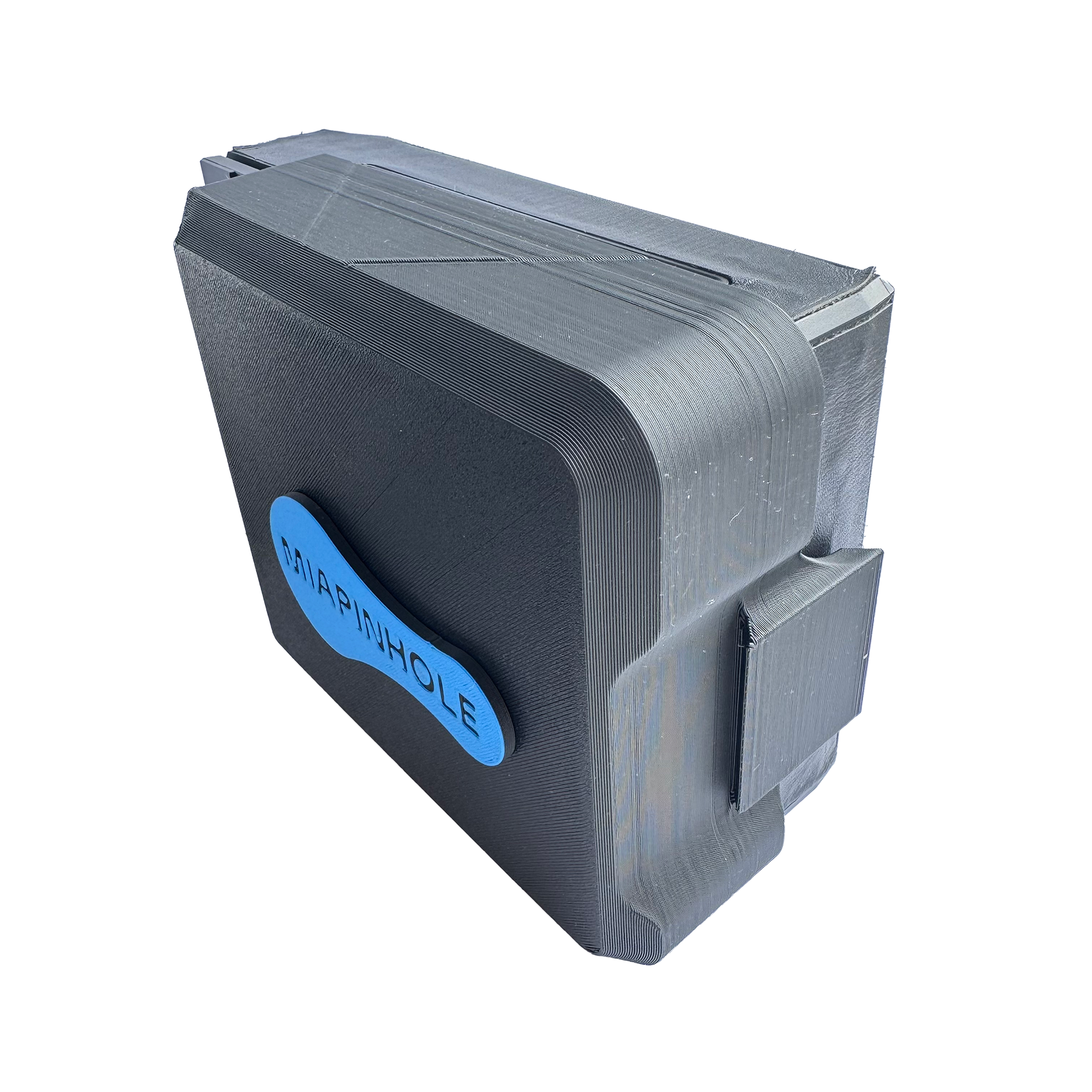

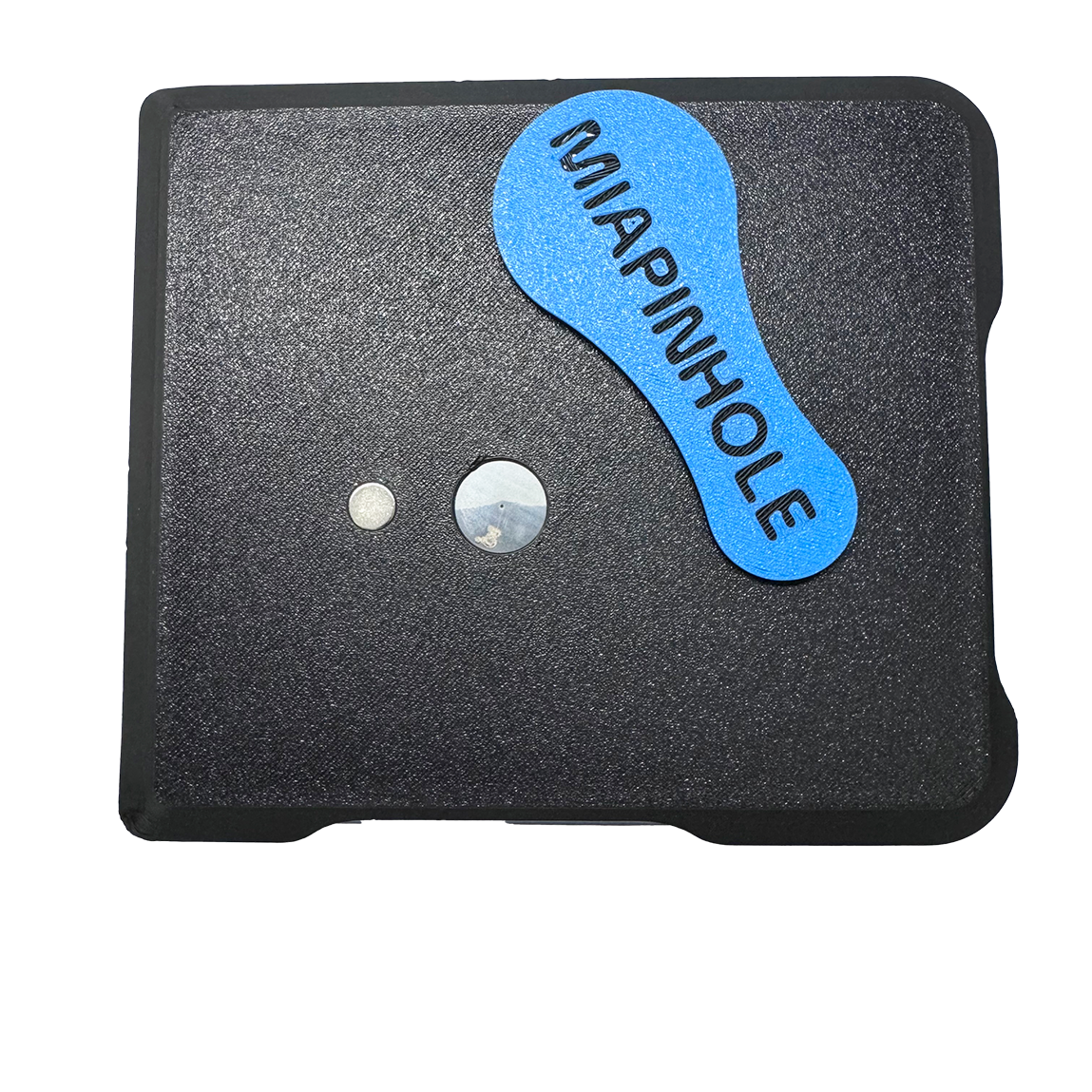

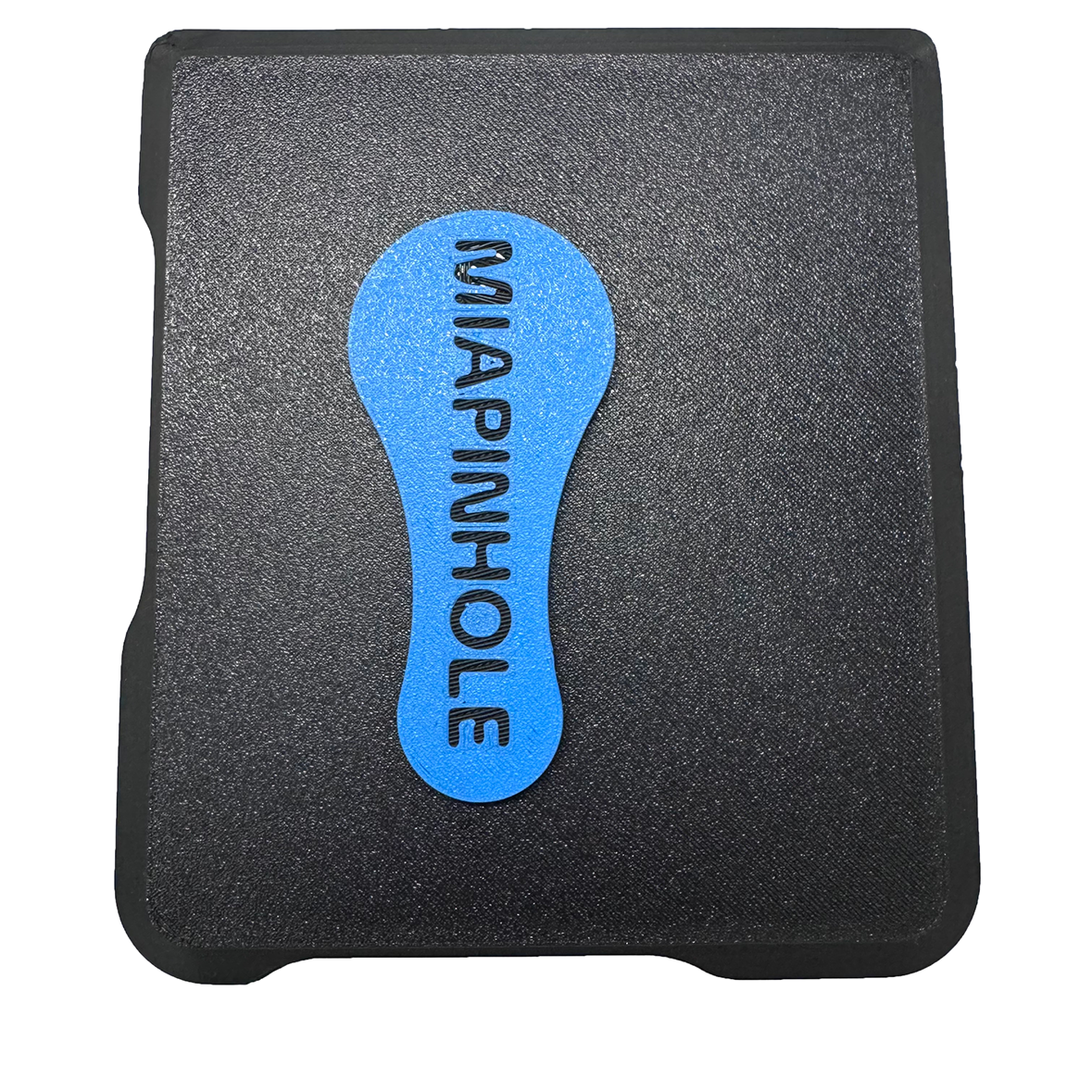

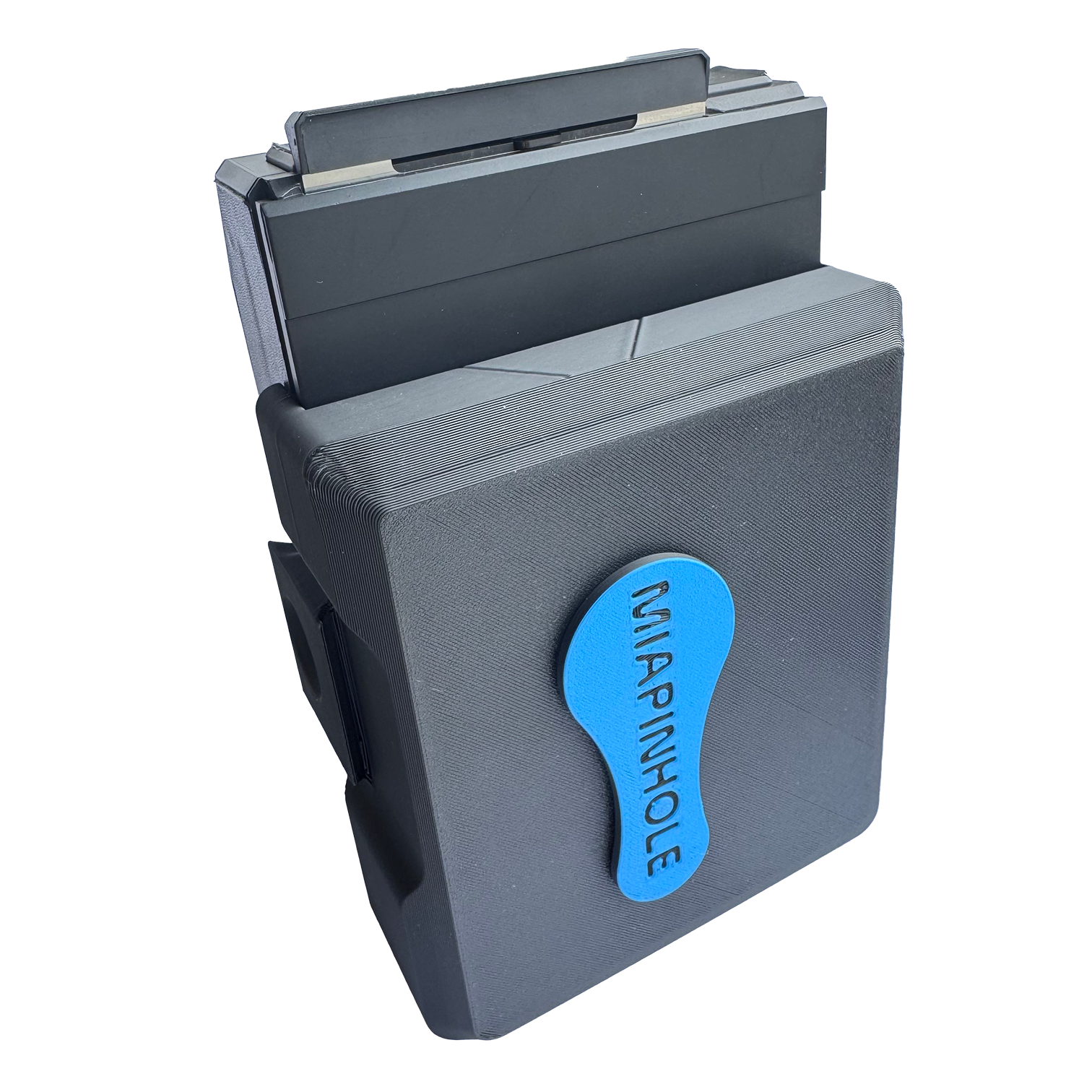

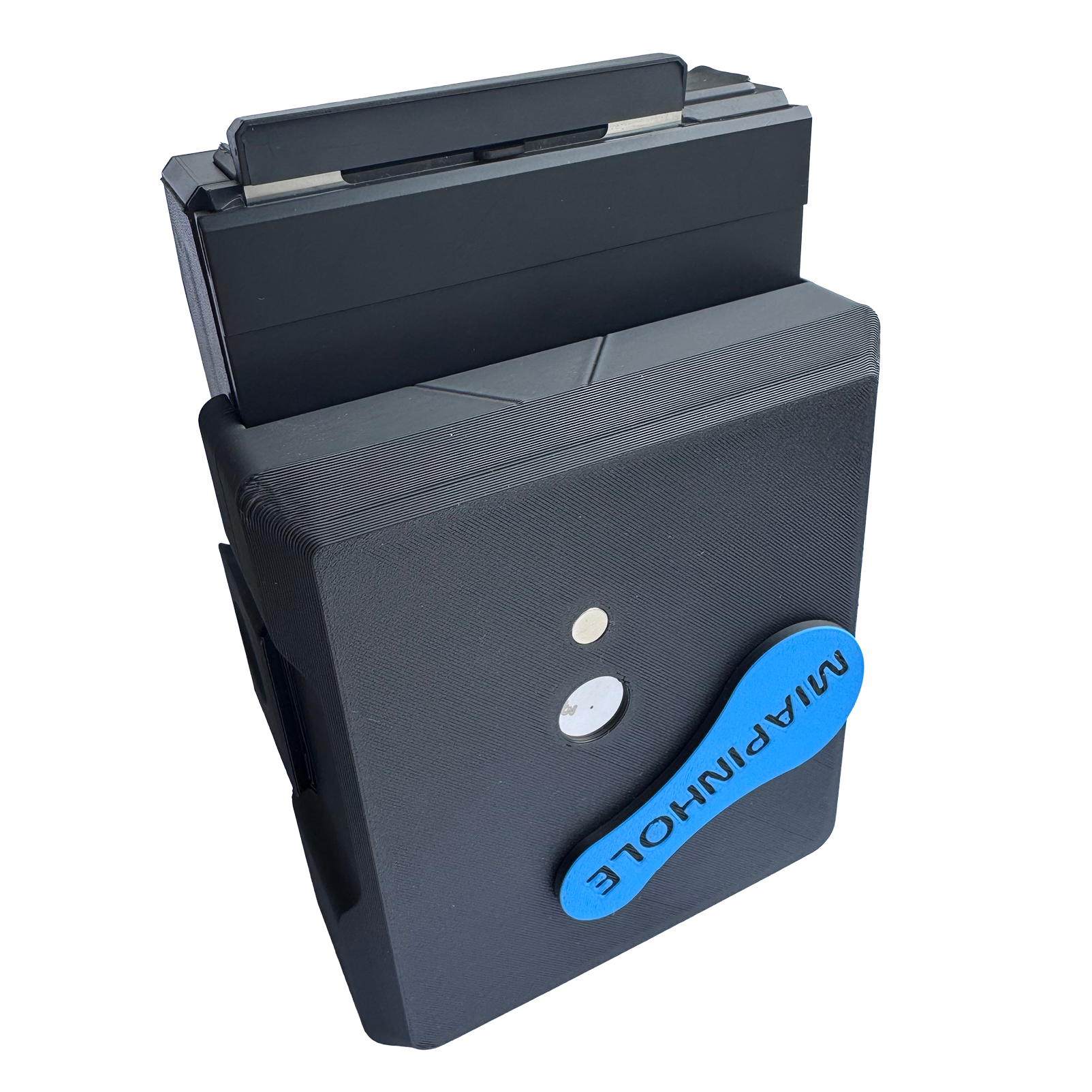

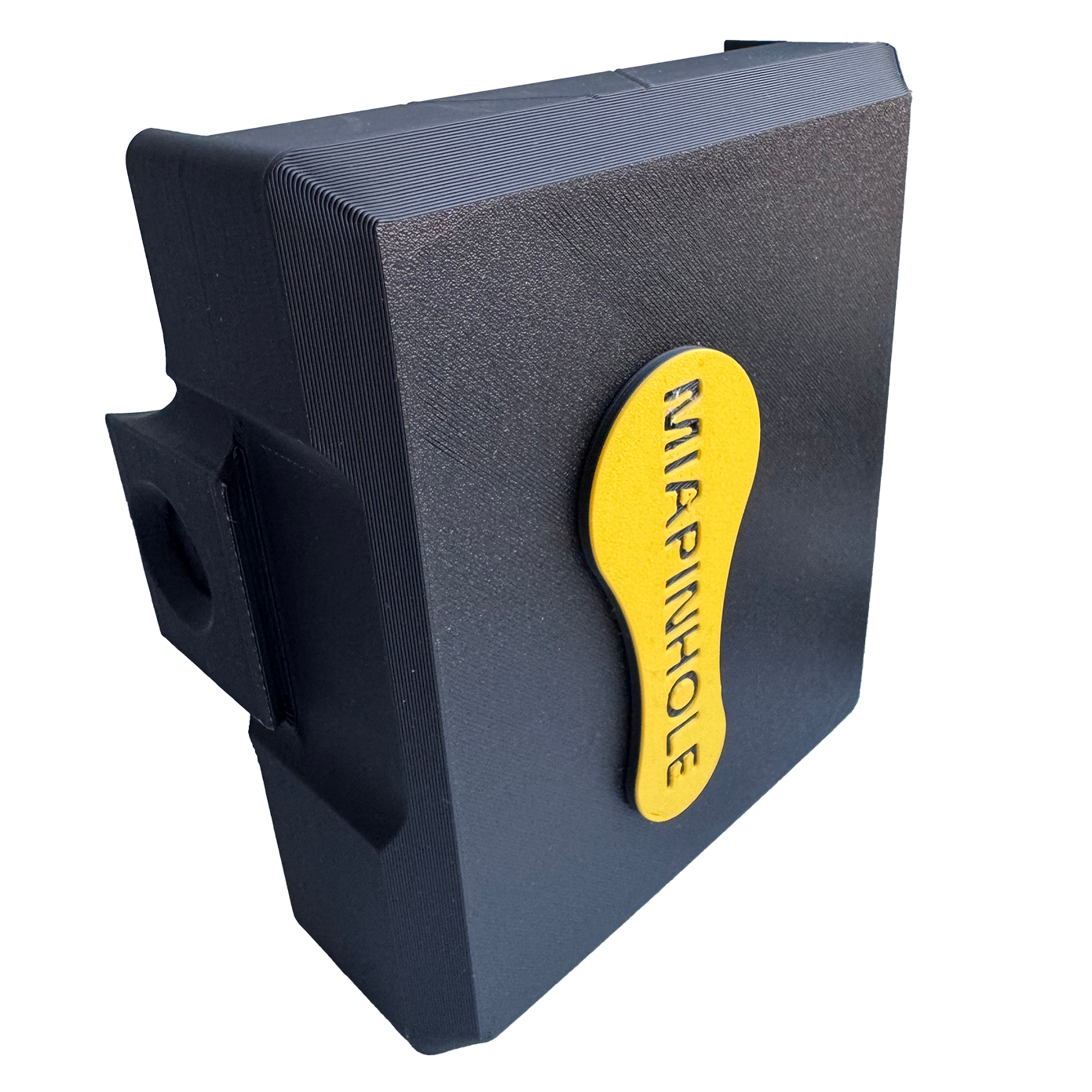

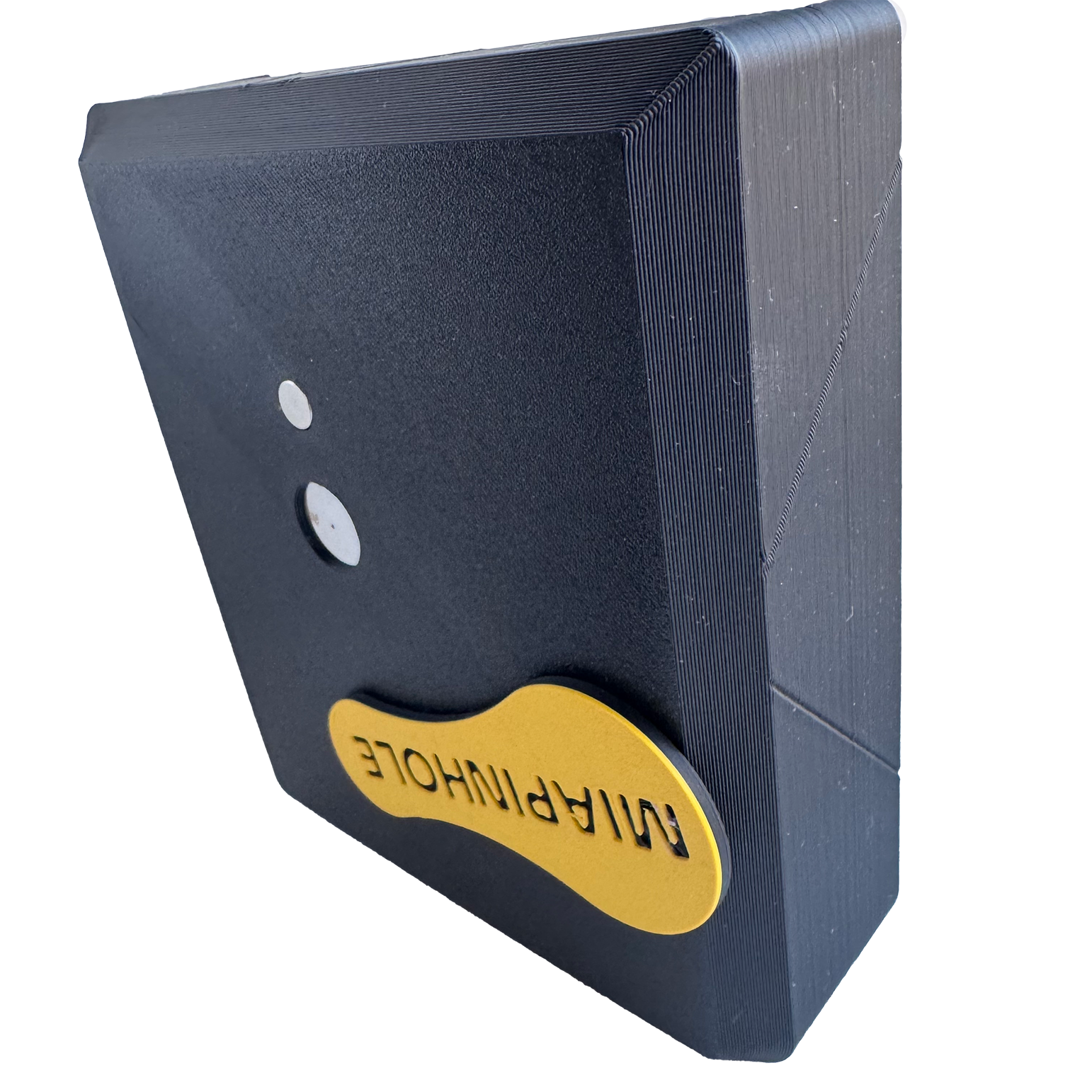

The MIA Lomograflok Chassis is designed to use the Lomography LomoGraflok 4×5 Instant Back as a complete pinhole camera.

With a 50 mm focal length and an aperture of f/160, it produces a wide field of view on Instax Wide film, making it ideal for landscapes, architecture and experimental compositions.

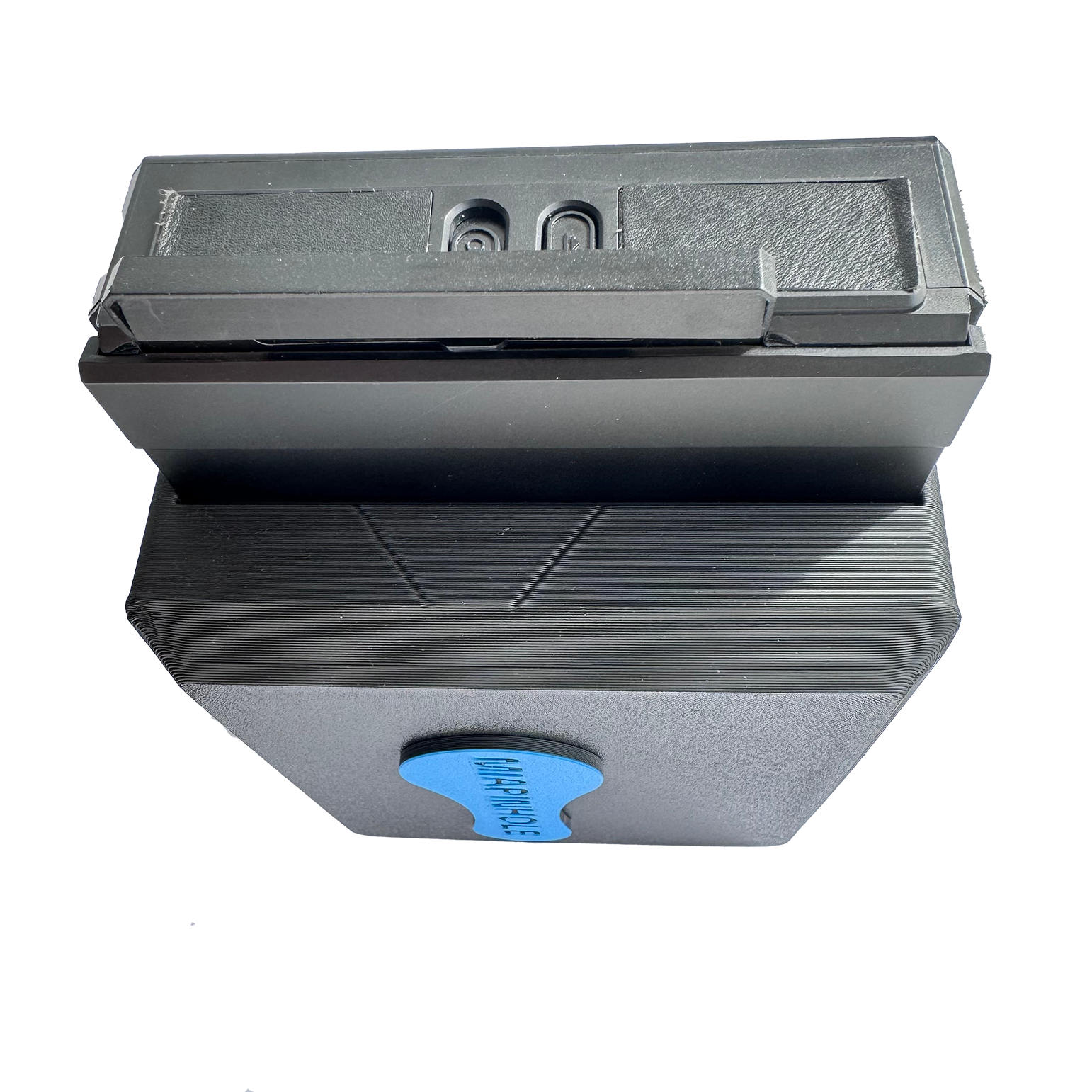

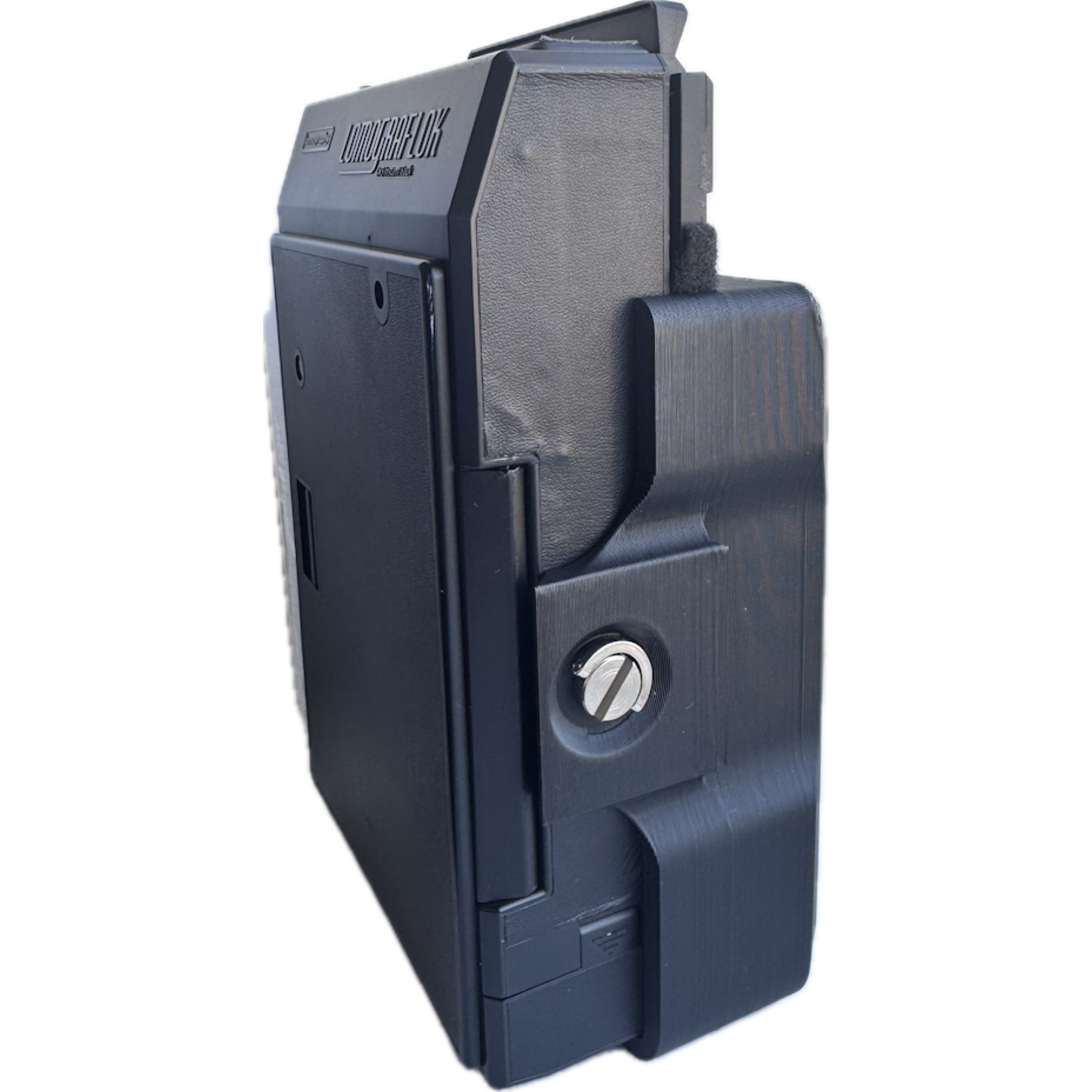

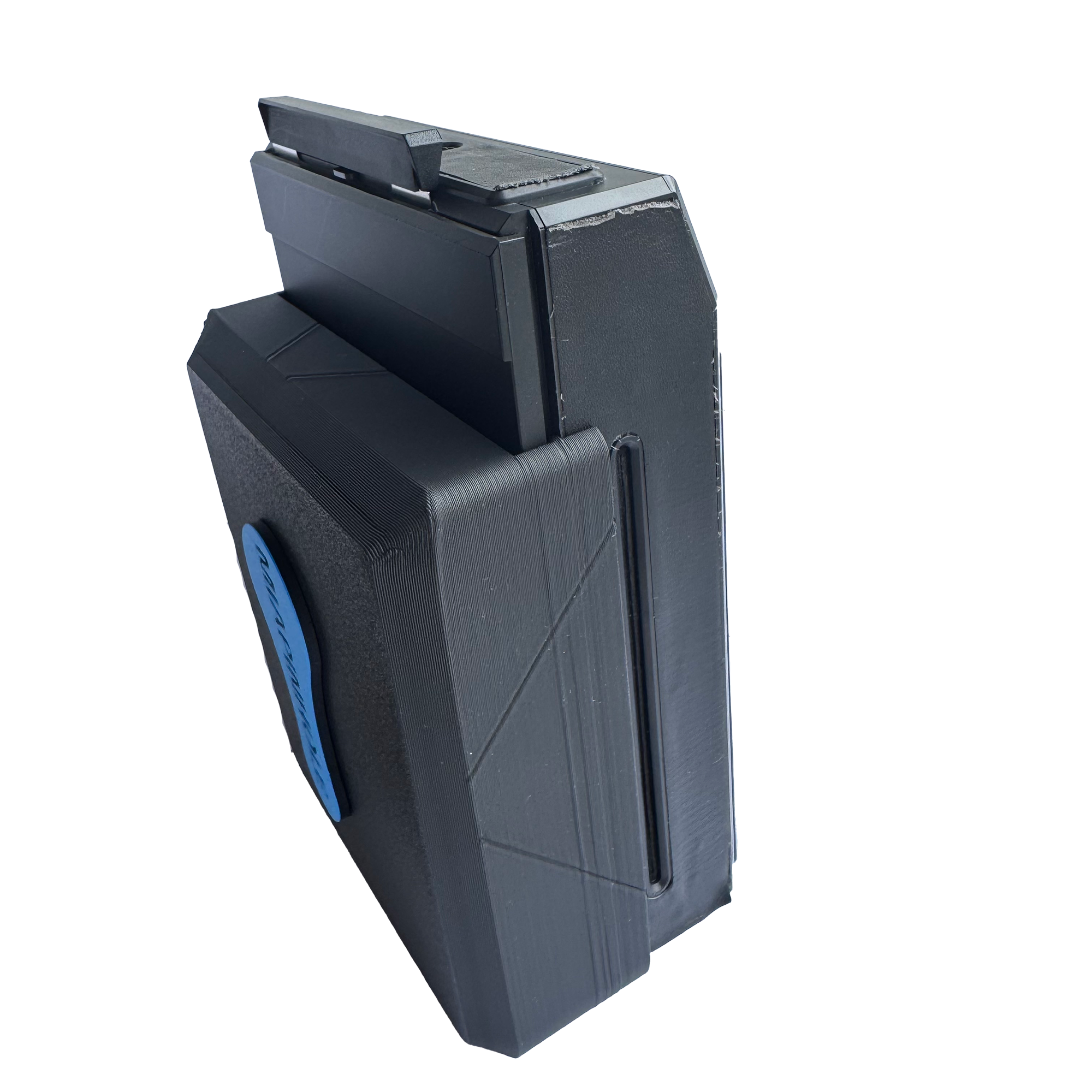

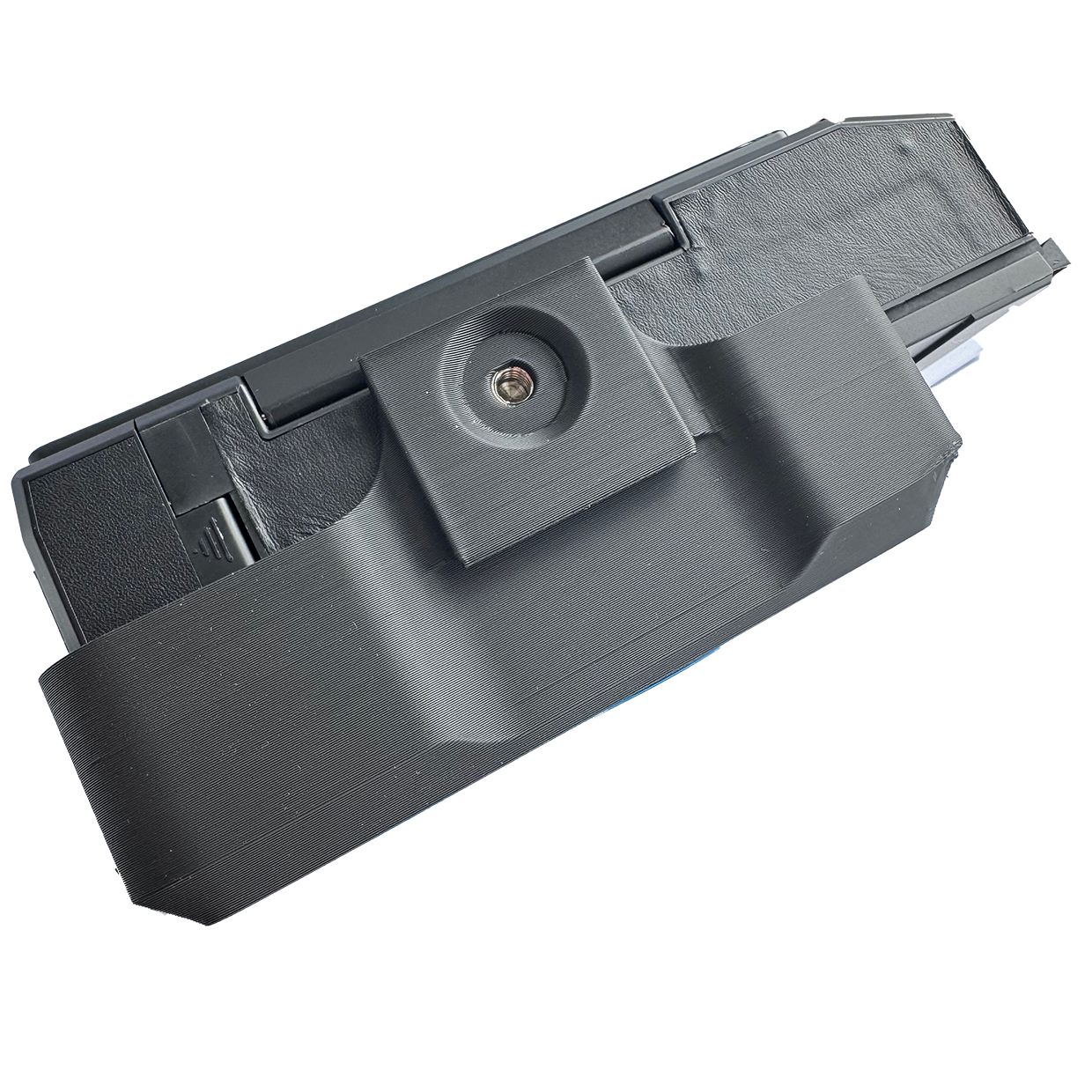

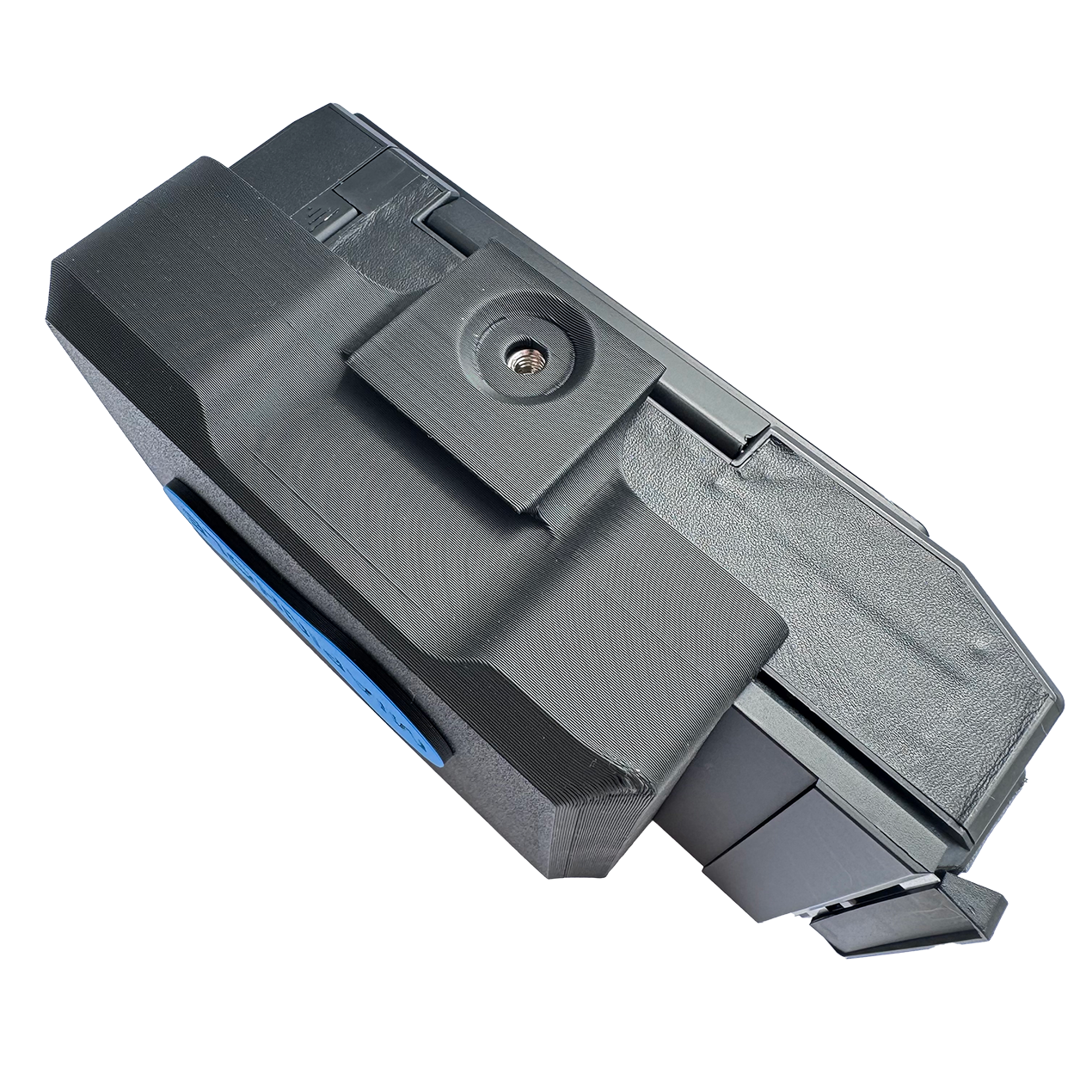

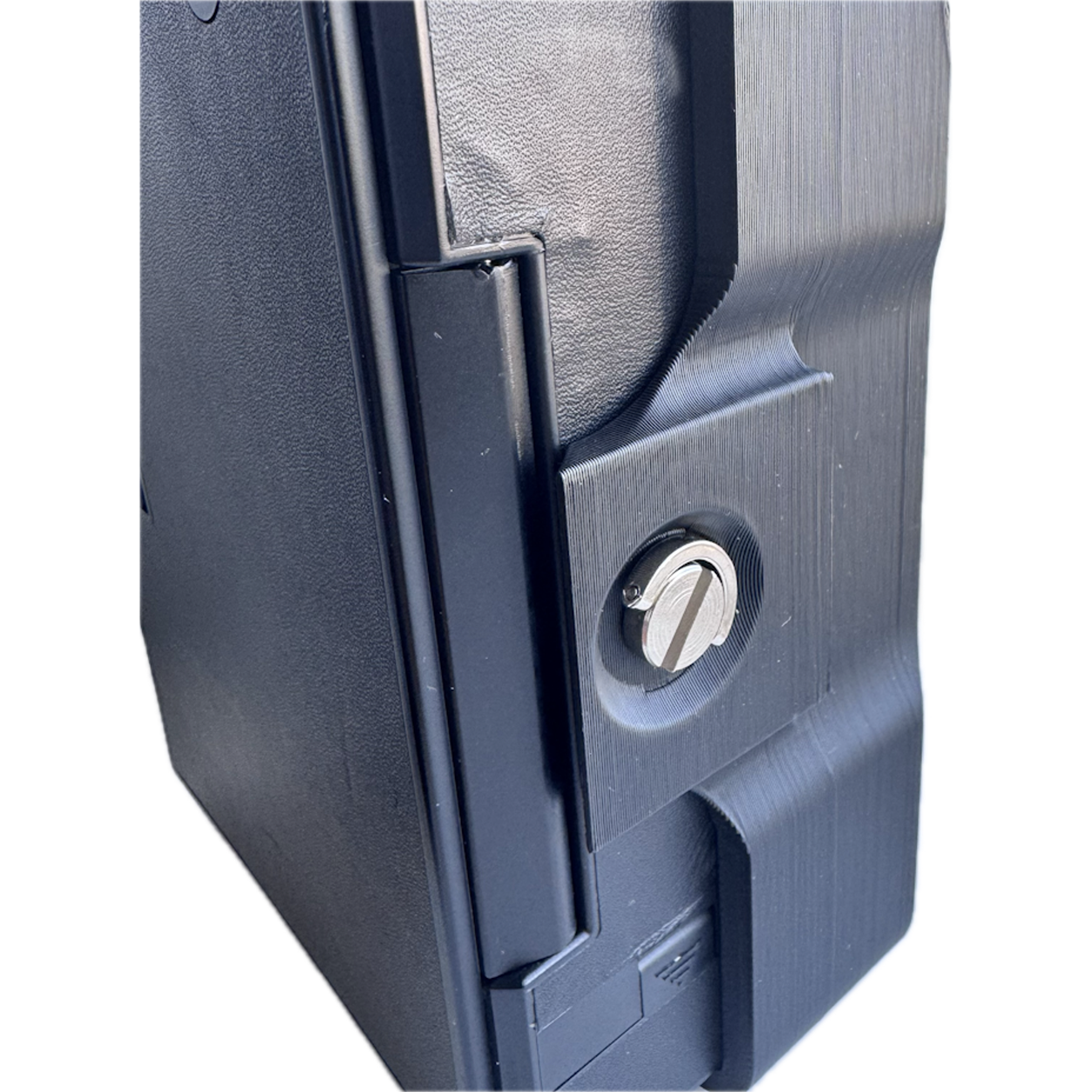

The LomoGraflok slides snugly into the chassis and remains securely in place. For additional security, one of the Arca-style plates includes a hole, allowing the back to be secured with a tripod screw if required.

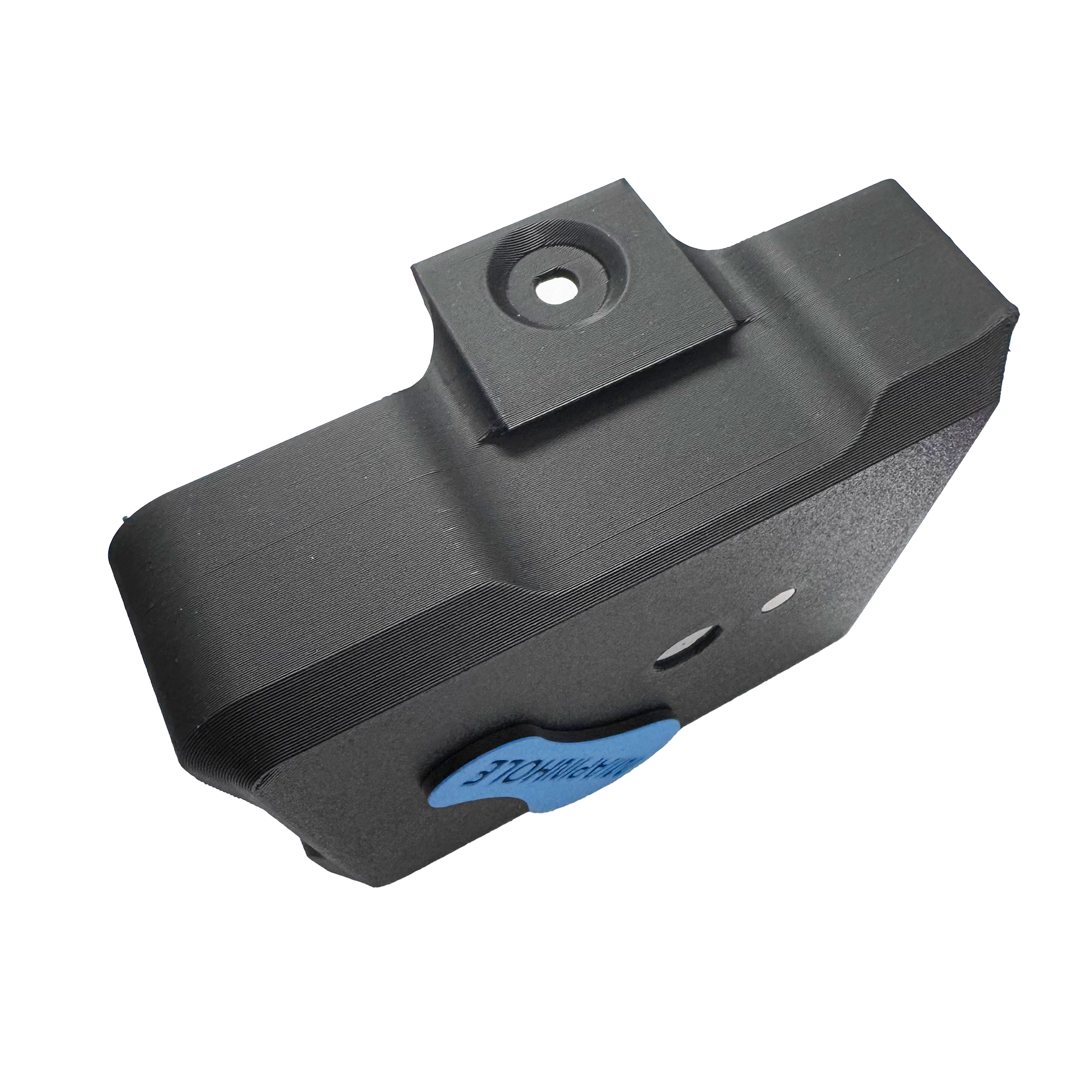

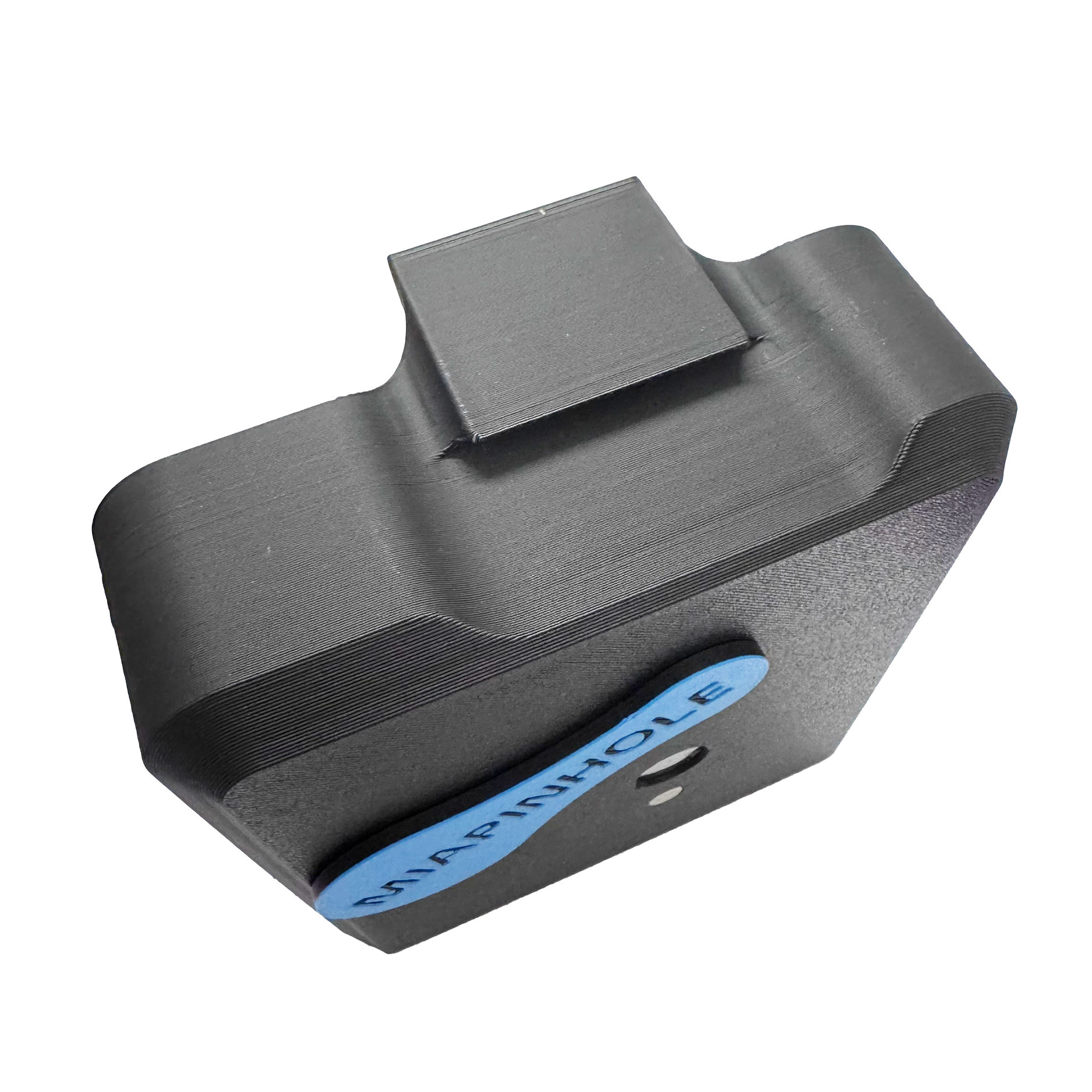

Two integrated Arca-style mounting plates allow the camera to be quickly switched between portrait and landscape orientation without adding separate tripod plates.

A simple chassis for wide instant pinhole images, long exposures and experiments you can hold in your hands a few moments later.

Specifications

• Compatible with the Lomography LomoGraflok 4×5 Instant Back
• Film format: Fujifilm Instax Wide
• Focal length: 50 mm
• Pinhole plates 0.3mm
• Aperture: f/160
• Weight 210 gr.
• Snug-fitting Lomograflok mounting system

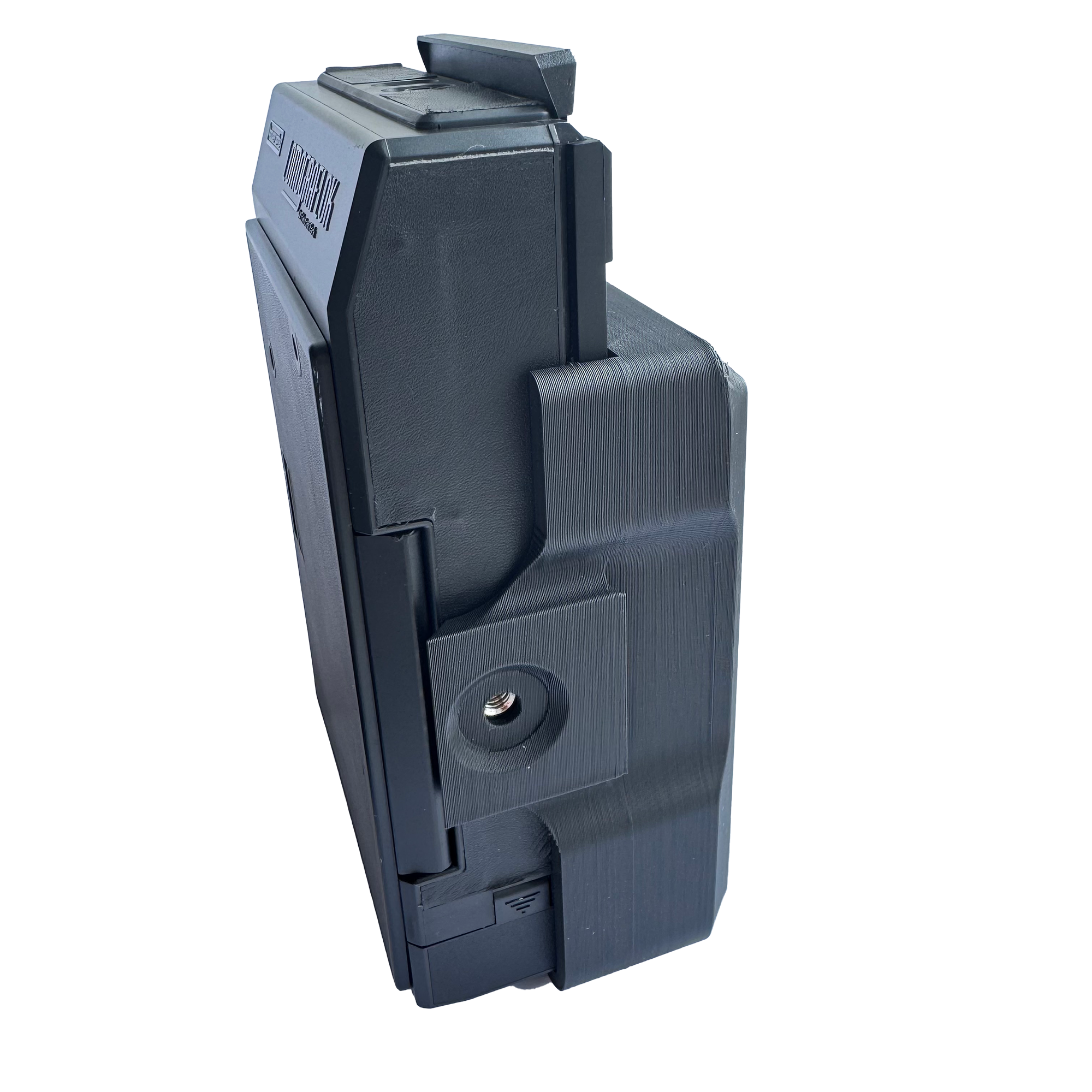

• Threaded hole for optional additional securing
• 2× integrated Arca-style tripod plates
• Portrait and landscape mounting

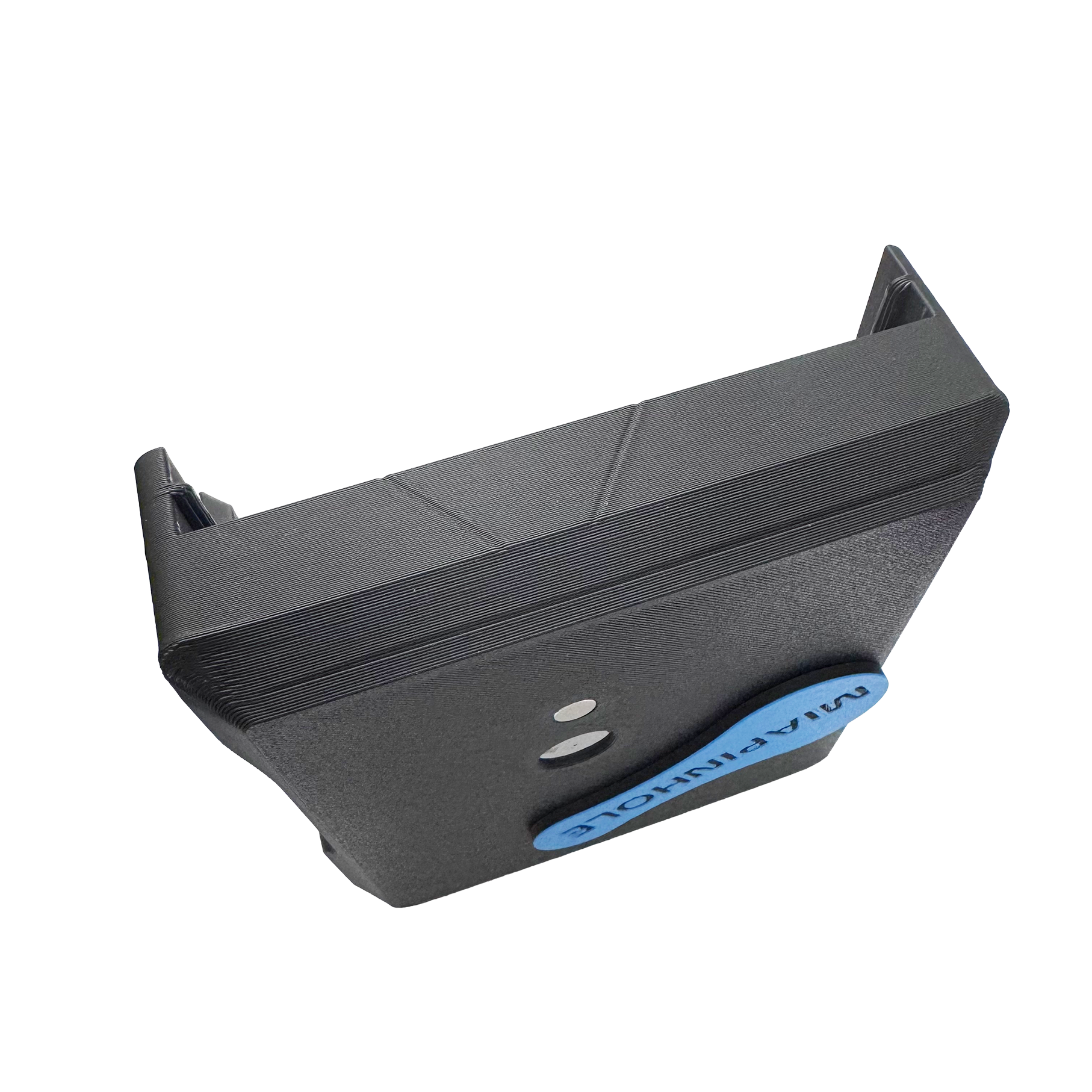

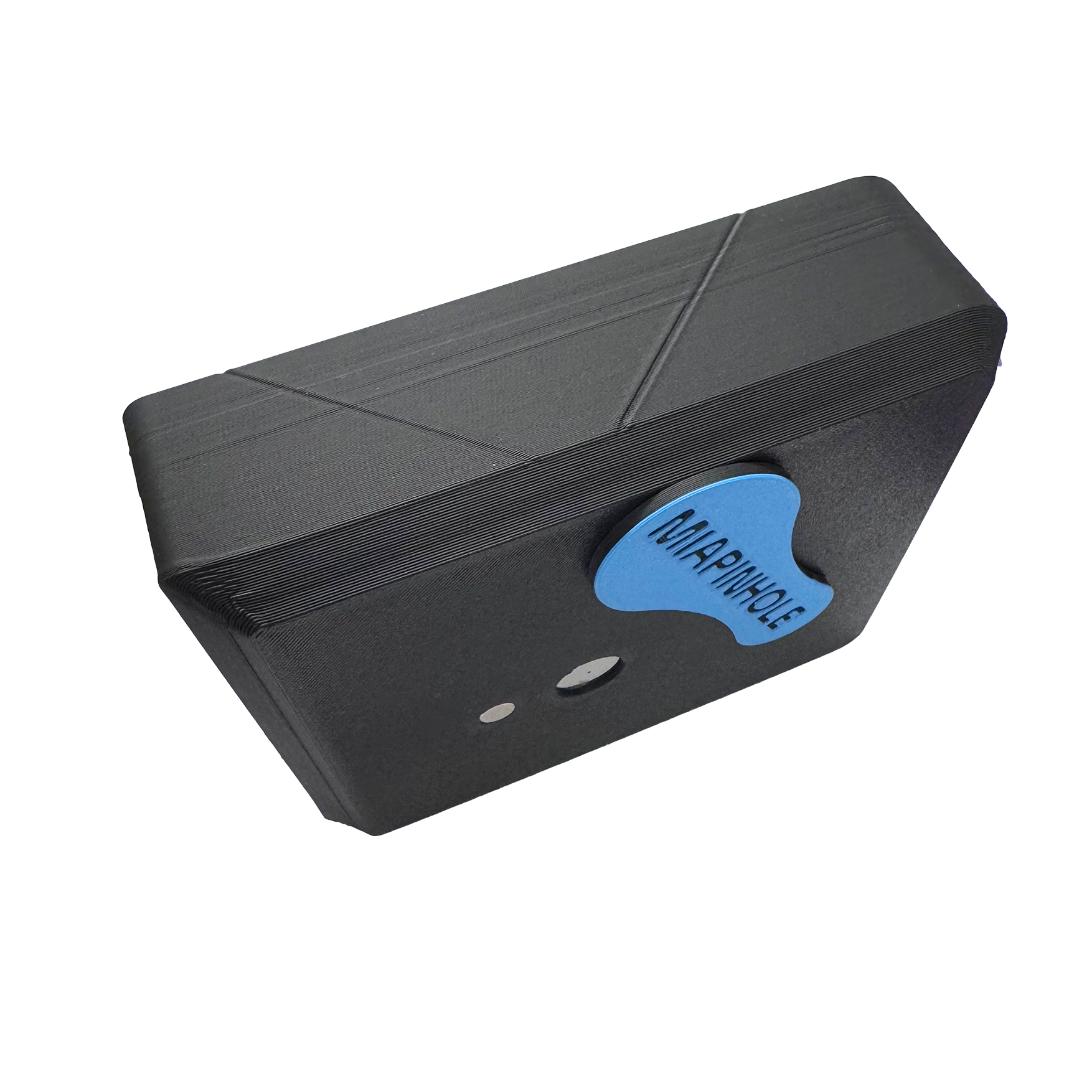

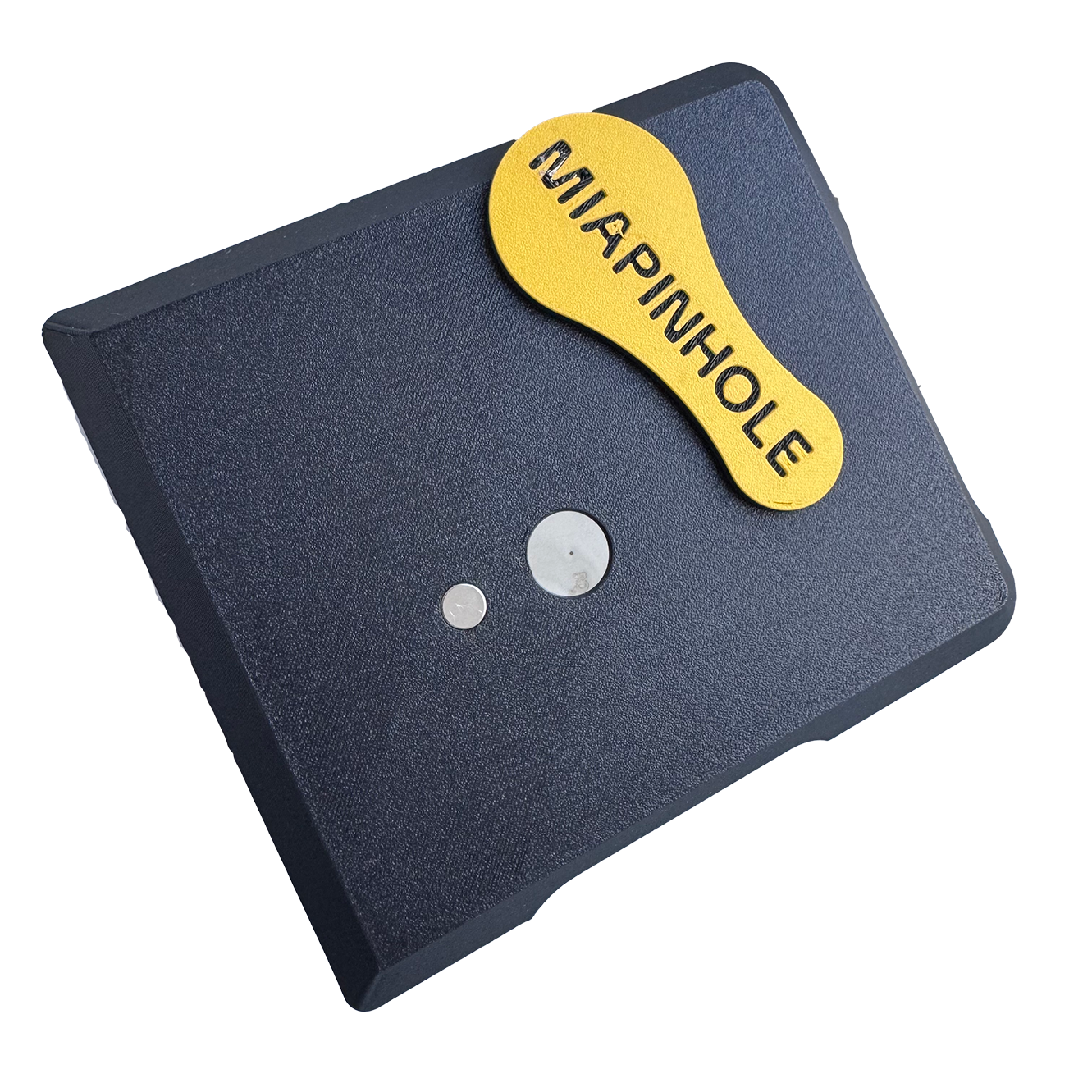

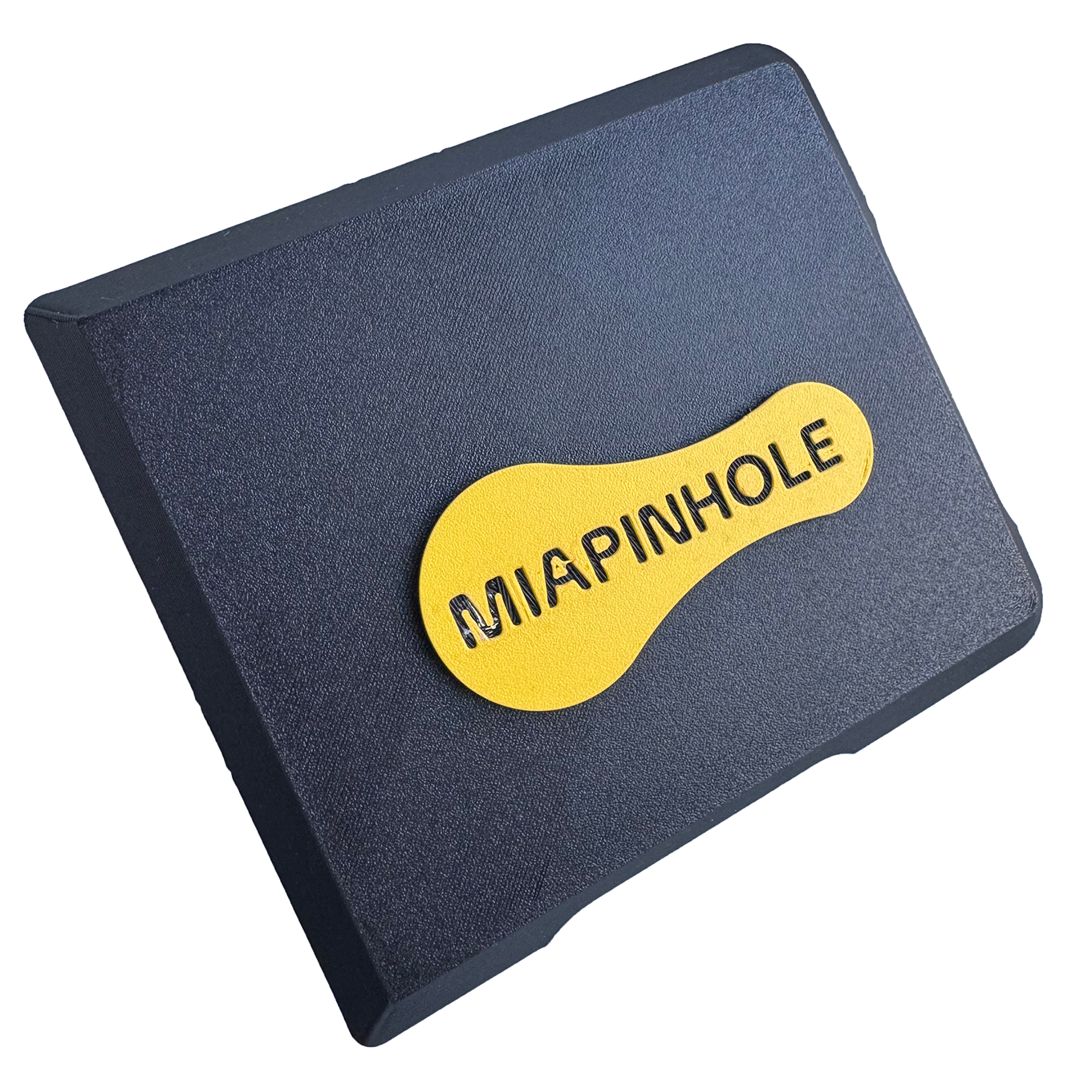

• Pinhole shutter included

LomoGraflok back and tripod screw not included.

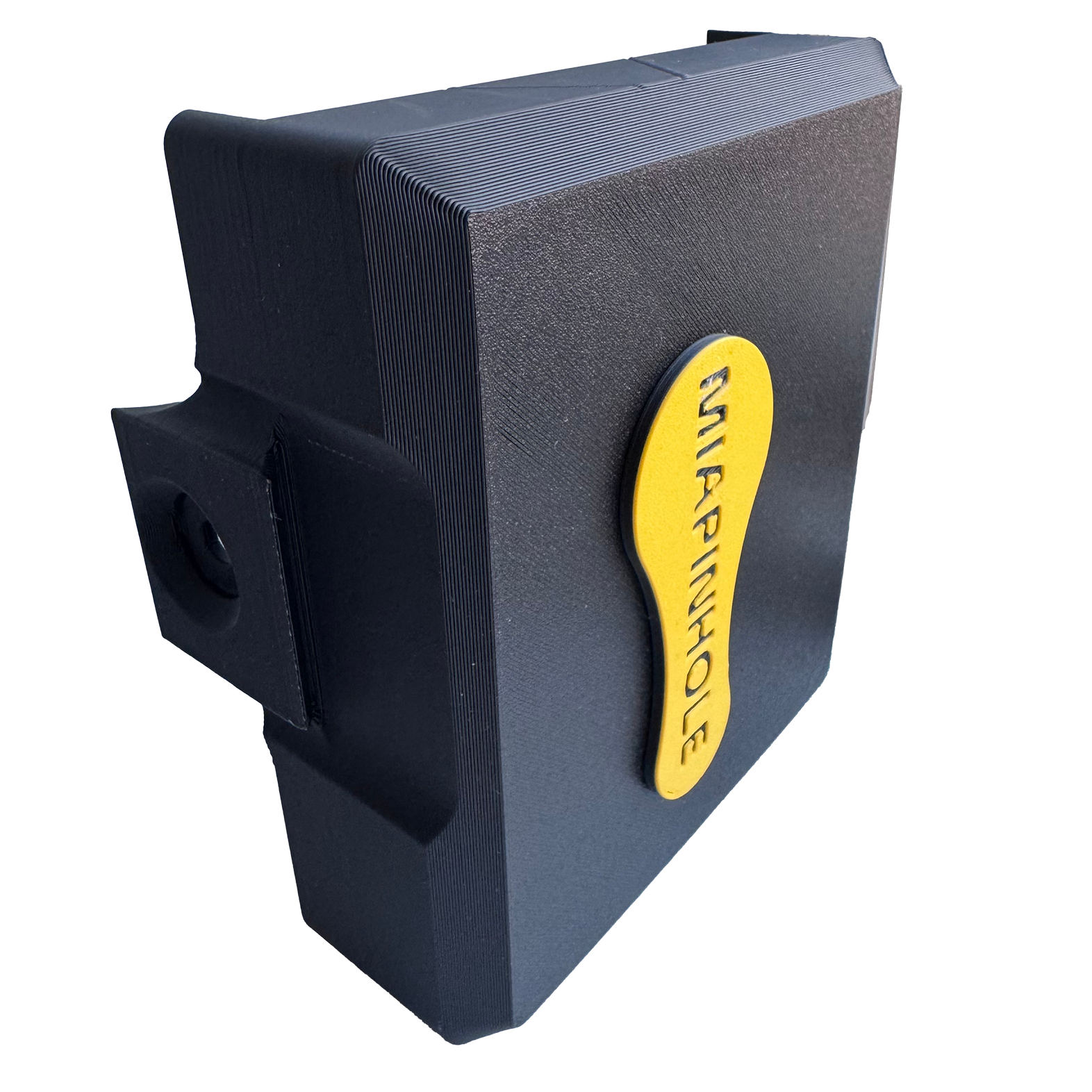

Colours shown in the images are just some possible options. Please get in touch if you would like to personalise your MIA chassis.

Build time 2-3 weeks.
